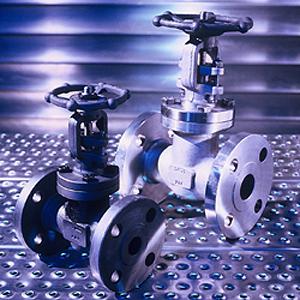

ASME-Gate Valves acc. API602 (2" as well acc. API600) with flanged ends (also in full bore)

Size range:
1/2“ (DN15) to 2“ (DN50)

Pressure class:
class 150#, class 300#, class 600#, class 1500#

End connections:
Flanges acc. to ASME B16.5

Materials:
1.0460 ~ A105N
1.0619 = A216-WCB
1.0566 ~ A350-LF2
1.7335 ~ A182-F12
1.7362 = A182-F5
A182-F9
A182-F11
1.4541 = A182-F321
1.4404 = A182-F316L

Check availability

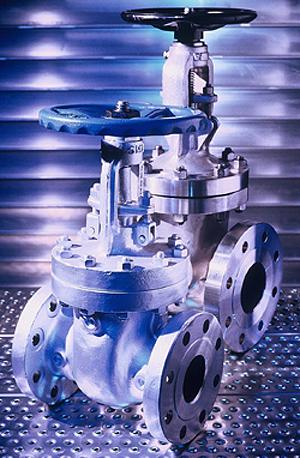

ASME-Gate Valves acc. API600 with flanged ends

Size range:
3“(DN80) – 20“(DN500)

Pressure class:
class 150#, (Gate valves) class 300#, class 600#, class 900#

End connections:
Flanges to ASME B16.5

Materials:
A216-WCB up to 20";
A217-C5 up to 10"
A217-C12 up up to 8"
A351-CF8C up to 8";
A351-CF8M up to 10"

Check availability

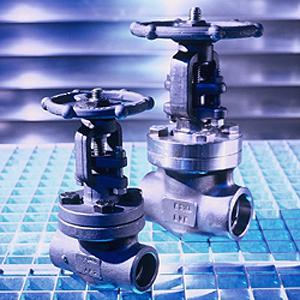

ASME-Gate Valves acc. API602 with female threaded ends, socket weld ends, butt weld ends (also in full bore)

Size range:
1/4“ (DN8)– 2“(DN50)

Pressure class:
class 150#, class 300#, class 600#, class 800#, class 1500#

End connections:
Female threaded acc. ASME B1.20.1.NPTF
Female threaded acc. BSP
Socket weld ends acc. ASME B16.11
Butt weld ends acc. ASME B16.25

Materials:
1.0460 ~ A105N (also with bellows seal)
1.0566 ~ A350-LF2
1.7335 ~ A182-F12
1.7362 = A182-F5
A182-F11
A182-F9
1.4541 = A182-F321
1.4404 = A182-F316L
Bronze ~ B62 up to class 300#

Check availability

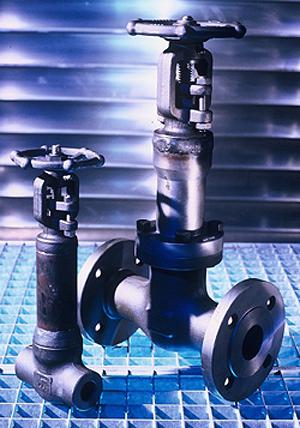

Special design

On request we are able to deliver ASME Gate Valves in other design and materials. In addition at our service plant we are able to modify standard stock valves according to your specification.
